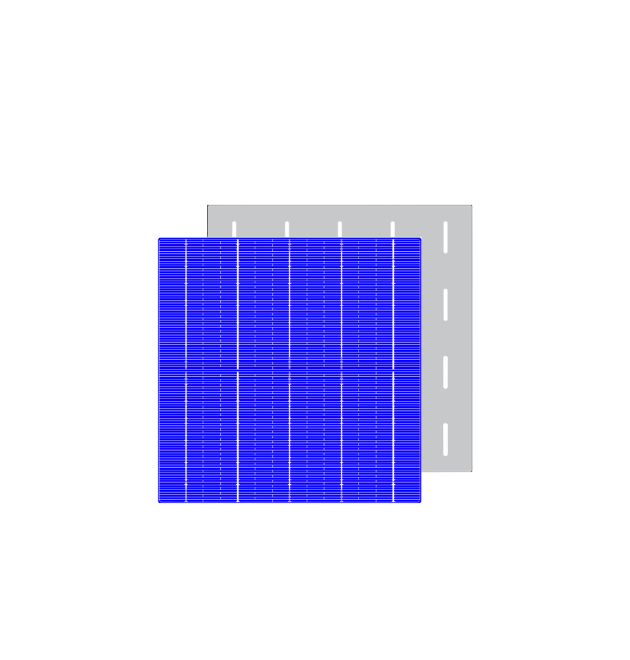

158.75×158.75mm 5BB Monofacial

158.75×158.75mm 5BB Bifacial
Physical Characteristics
Dimension	158.75mm×158.75mm±0.25mm Bifacial
Diameter	223mm±0.25mm
Thickness (si)	160±20μm
Front Side (-)	0.7±0.05mm 5 busbars(Ag),blue anti-reflecting coating(SiNx)
Back Side (+)	1.8 mm (silver) discontinuous soldering pads

Physical Characteristics
Efficiency	Rated Power	*Maximum Power	*Maximum Power	*Open Circuit	*Short Circuit
Range (%)	(Wp)	Voltage (V)	Current (A)	Voltage (V)	Current (A)
22.8	5.75	0.588	9.78	0.685	10.28
22.7	5.72	0.586	9.76	0.683	10.27
22.6	5.7	0.585	9.75	0.682	10.26
22.5	5.67	0.583	9.73	0.68	10.24
22.4	5.65	0.582	9.71	0.679	10.23
22.3	5.62	0.58	9.7	0.678	10.22
22.2	5.59	0.579	9.69	0.676	10.21
22.1	5.57	0.577	9.68	0.676	10.21
22	5.54	0.577	9.58	0.673	10.18

Solar cell
