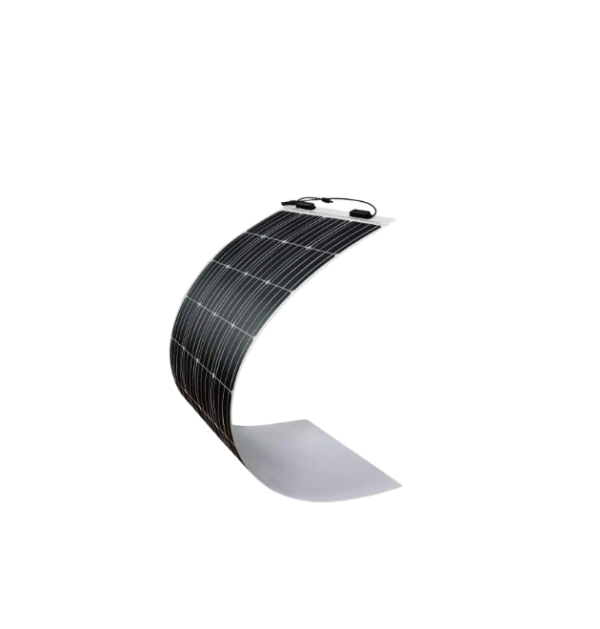

100W Flexible Light-weight panel

100W Flexible Light-weight panel
Specification	Data
Watt	100Watt
Cell Type	Mono/Poly-crystalline
Cell Arrangement	36 (4 X 9)
Dimensions	Customize Size
Front Cover	PET or ETFE
Frame	Frameless
Backsheet	White/Black

ELECTRICAL CHARACTERISTICS (STC)
STC (Standard Test Conditions): 1,000 W/m2, (25 ± 2)°C, AM 1.5
Capacity Rating Pmax(W) 100Watt
Maximum Power Voltage Vmpp (V) 20.0
Maximum Power Current Impp (A) 5.0
Open Circuit Voltage Voc (V) 22.0
Short circuit Current Isc(A) 5.4
Encapsulation: Clear PET+EVA+CELL+EVA+White PET/ETFE
Mechanical Characteristics
Dimensions (L x W x D) Customize size with Cable 1.0M Cable with MC4 Connectors
